Search Enrollment Cases

Looks up existing enrollment data based on specified search fields.

Widget

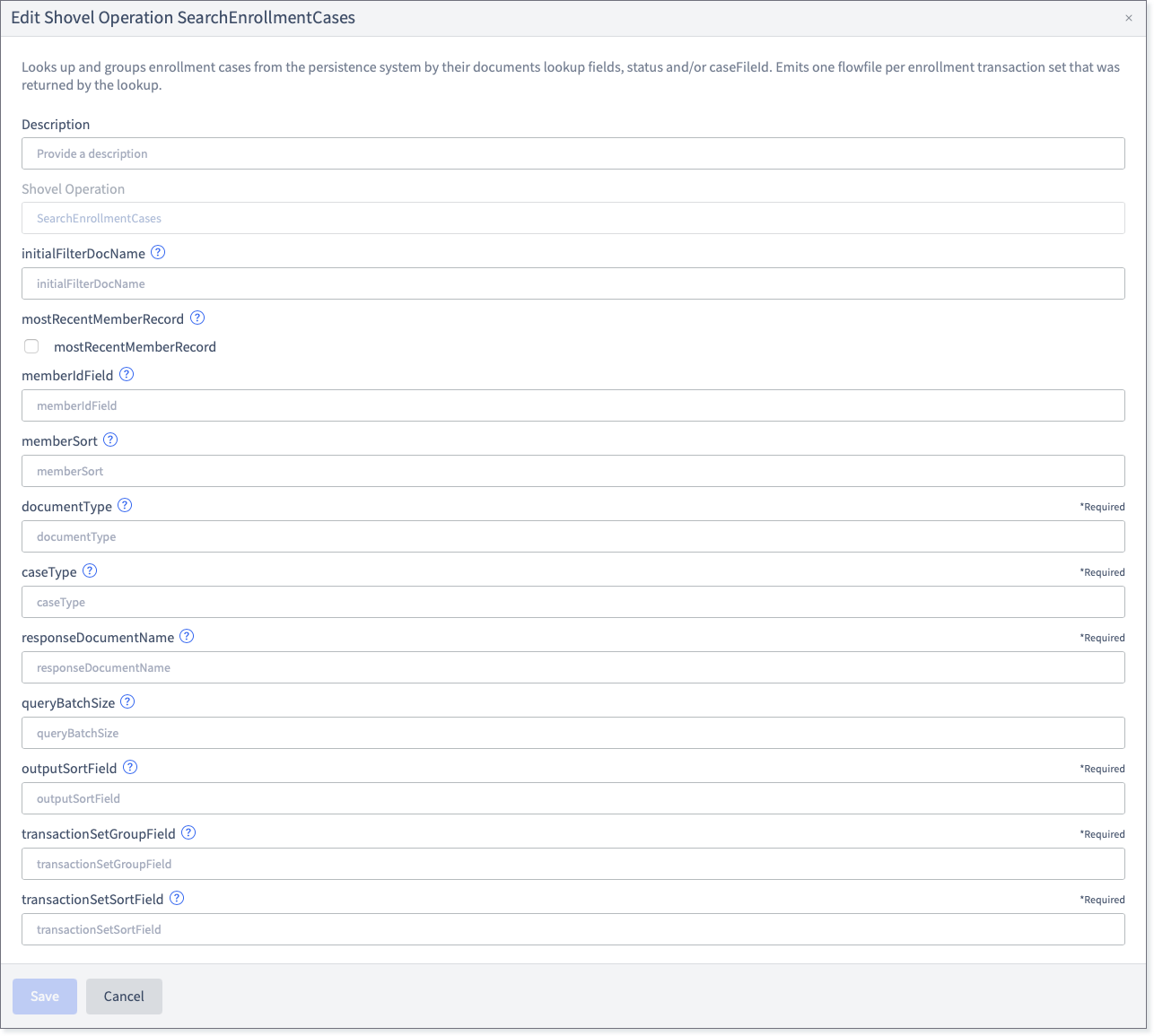

Configuration

  1. Fill in the following fields:

    • Description: Allows changing the name that appears on the widget. This may be useful to quickly find a particular widget or distinguishing it from other similar shovel operation widgets when building large flows.


    • Shovel Operation: The name of the Shovel Operation. Pre-configured to SearchEnrollmentCases.

    • initialFilterDocName: The name of the runtime document containing the query query to apply as the initial filter. This is a arbitrary String value. E.g., a query to select all member records that came from a single file.

    • mostRecentMemberRecord: The default setting is False, however, it is suggested to set to True if the initial filter is not specific enough (or doesn’t exist) to return one record per member.

    • memberSort: A comma separated list of LookupField names and sort direction. When member records for the same memberId are sorted in this way, the first record should be the most recent.

      Example:

      sourceFileTimestamp=-1, TsSequenceInFile=-1, memberSequenceInTs=-1)

    • documentType: The document type to retrieve, eg.,: OutgoingEnrollment. (See Section : “CaseTypes, DocTypes, and Status Events”)

    • CaseType: The case type to retrieve, e.g., Enrollment. (See Section : “CaseTypes, DocTypes, and Status Events”)

    • responseDocumentName: The name of the document that will be added to the Context Document, where the retrieved cases will be added. This is an arbitrary String value.

    • queryBatchSize: The number of results to return in each page of data. The default is 1000.

    • outputSortField: LookupField used to sort the output followed by sort direction in the form of sequenceInFile=1. This will determine the sorting order of how the results will come in (e,g,. timestamp=1).

      Note

      1 represents an ascending order, while -1 represents a descending order.

    • transactionSetGroupField: The LookupField used to group member records together into a transaction set.

      Example:

      subscriberId

      Note

      If you want to have one output flow file per each member record you need to set this to a field that returns an unique value.

    • transactionSetSortField: The name of the LookupField used to sort member records within a transaction set followed by a sort direction. This is an arbitrary String value.

      Example:

      loopSplitFragmentIndex=1

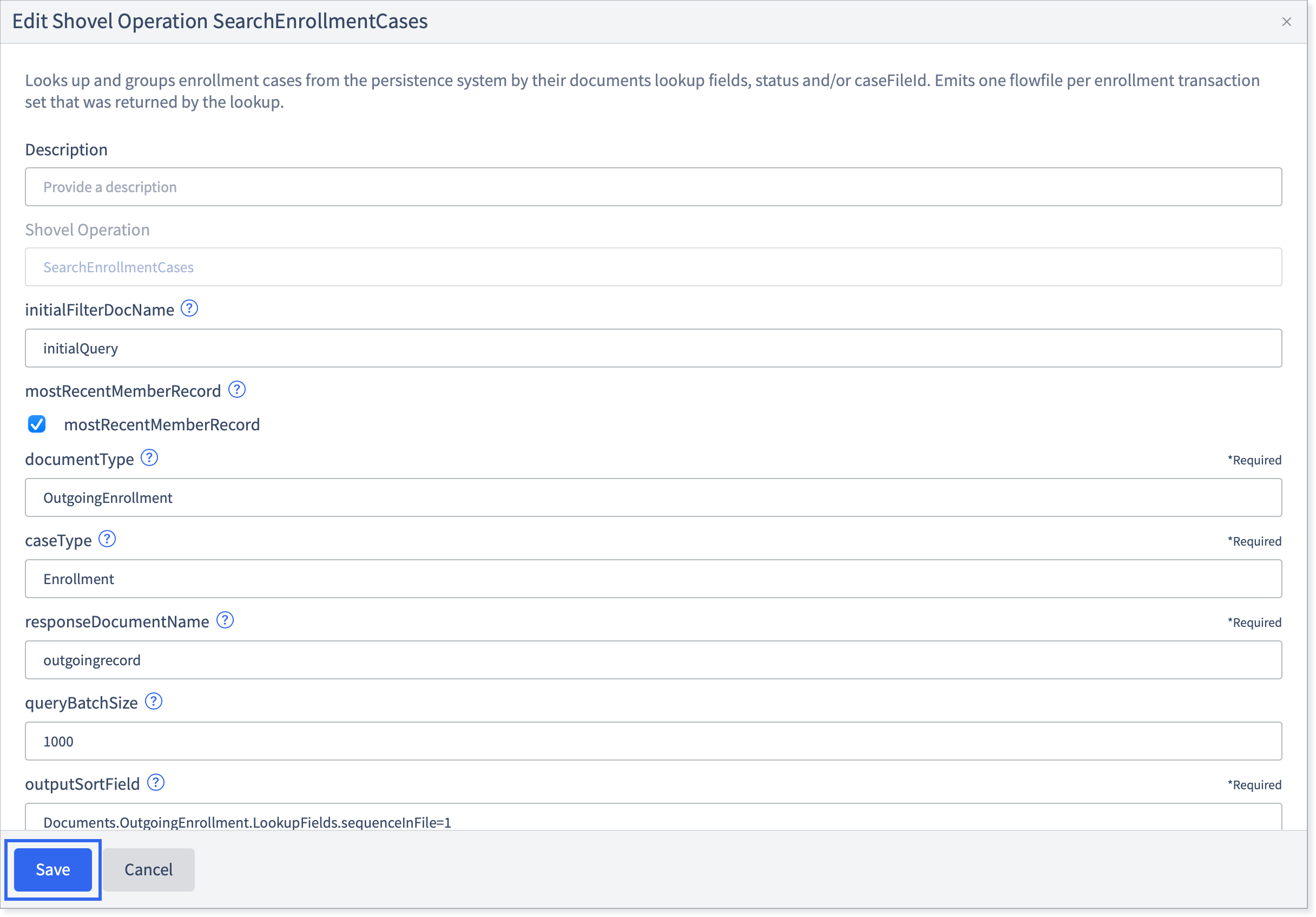

  2. If necessary, click the Notes tab and enter any relevant information.


  3. Click Save.


  4. The widget will be marked with a green check.
