Retrieve Single Case

Looks up a single case from the persistence system by its ID.

Widget
Configuration

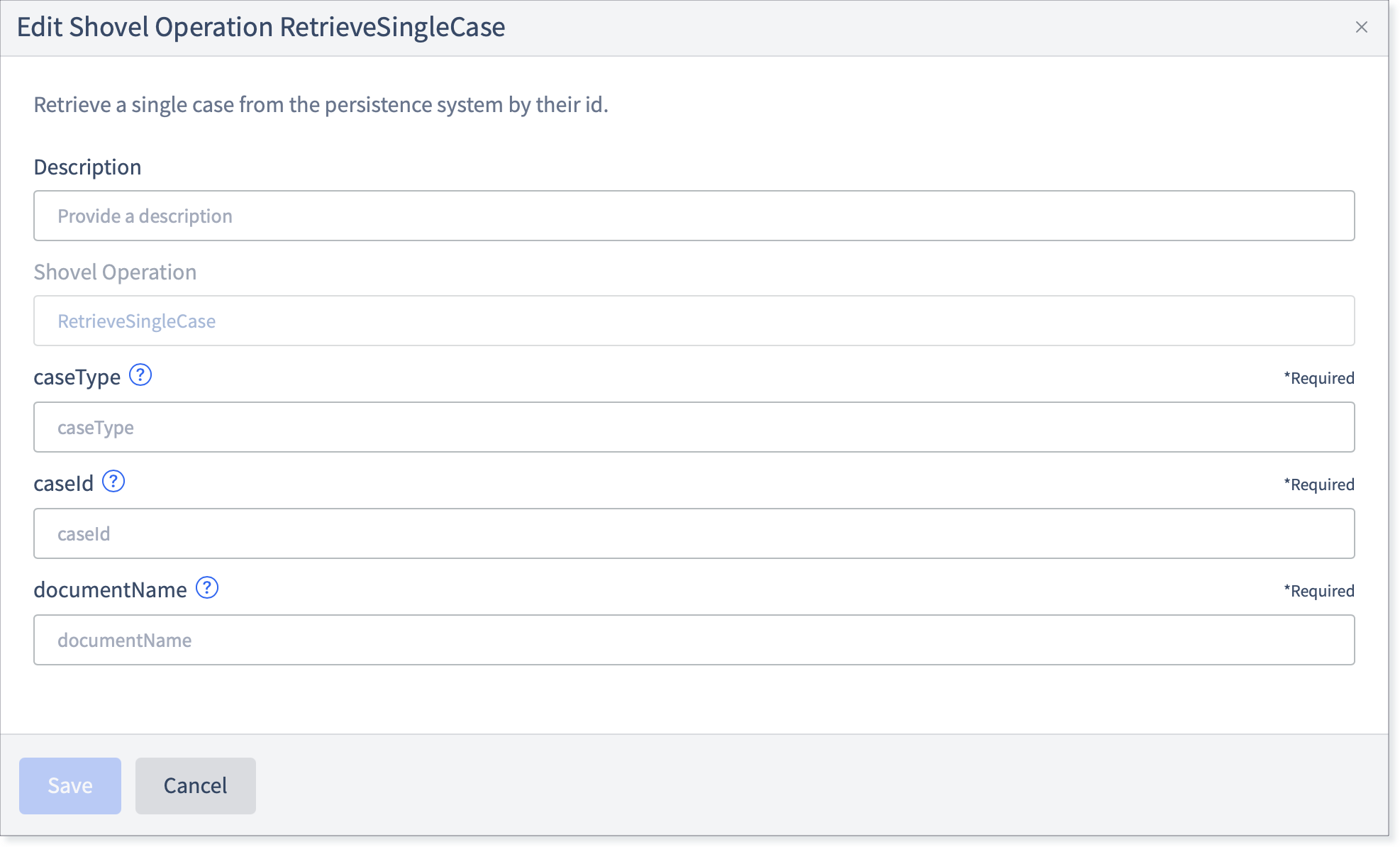

  1. Fill in the following fields:

    • Description: Allows changing the name that appears on the widget. This may be useful to quickly find a particular widget or distinguishing it from other similar shovel operation widgets when building large flows.


    • Shovel Operation: The name of the Shovel Operation. Pre-configured to RetrieveSingleCase.

    • caseType: The case type to retrieve. (See Section : “CaseTypes, DocTypes, and Status Events”)

    • caseId: The ID of the case to retrieve.

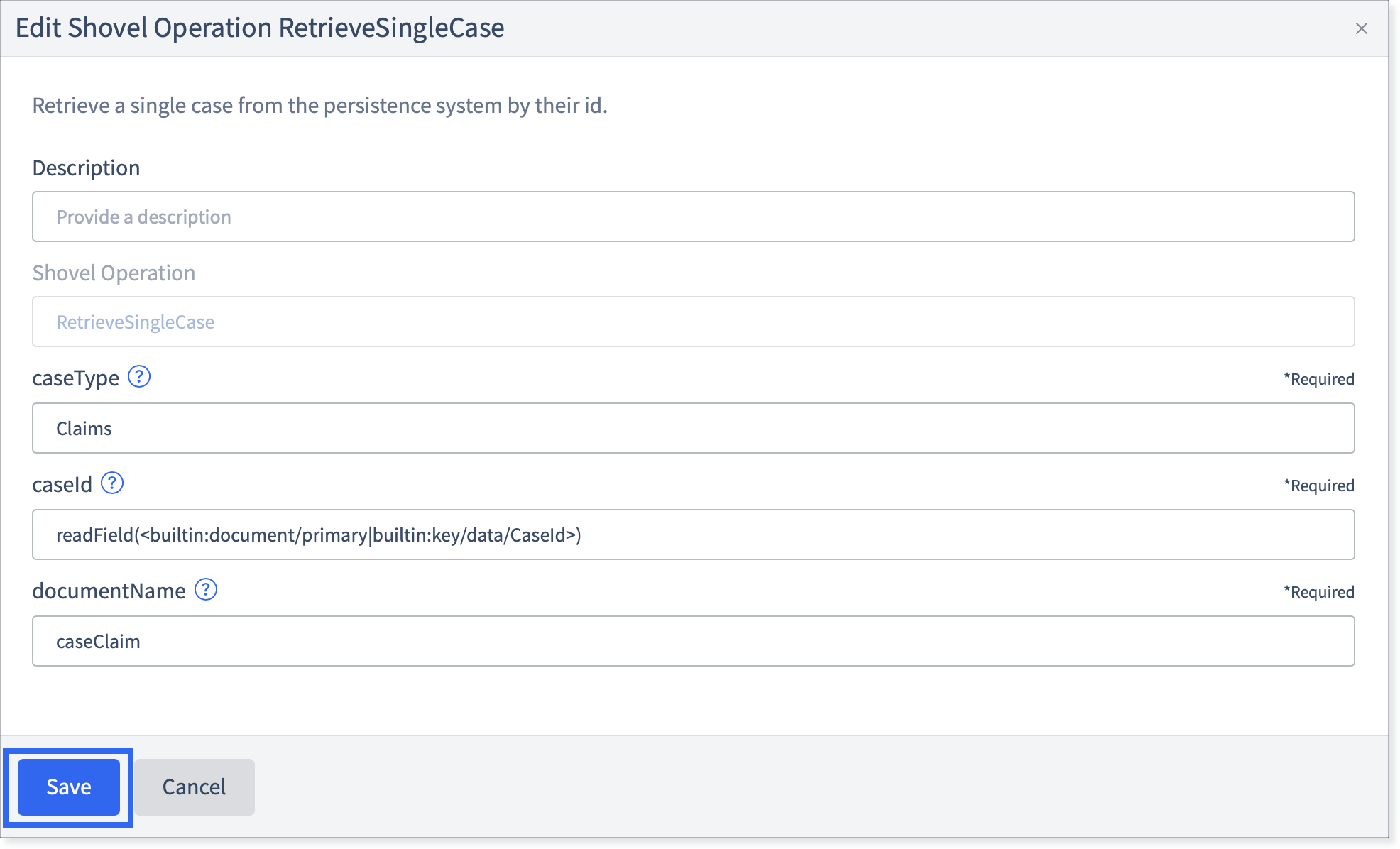

      Example:

      atFieldRead(fieldReference("builtin:document/caseId"),readField(fieldReference("builtin:key/data")))

    • documentName: The name of the document in the runtime context that will contain the result of the operation.

  2. If necessary, click the Notes tab and enter any relevant information.


  3. Click Save.


  4. The widget will be marked with a green check.

In this section:

A Shovel Operation is the simplest building block that can be used to build flows. Shovel Operations define configuration, inputs and outputs and are combined together in order to build more complex flows.

A persistance object for metadata that may contain files and documents.

A persistance object for metadata that may contain files and documents.

Single json representation of a document in standard runtime. Documents are contained within a document context. Document also defines a type and associated metadata for the documents.
