Parse with FileDefinition
This shovel operation validates and parses a file based on a particular File Definition.
The Parse with FileDefinition operation accepts a file in Single File Mode, parses and validates the document. This switches the mode to standard runtime mode. The Validate document operation creates 2 output flows each containing one context:
one containing the parsed split portions of a file
one containing validation results
Widget
Configuration

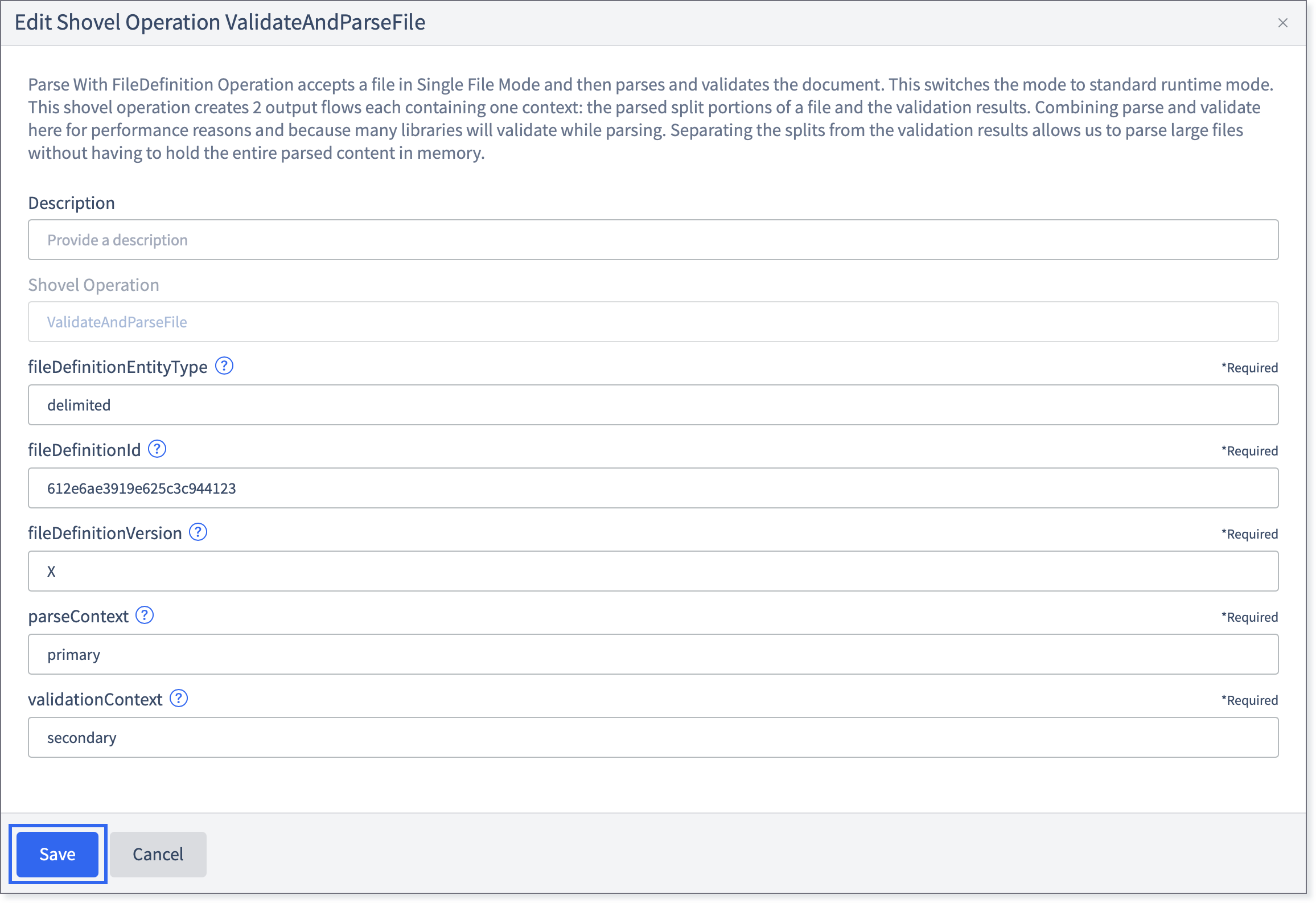

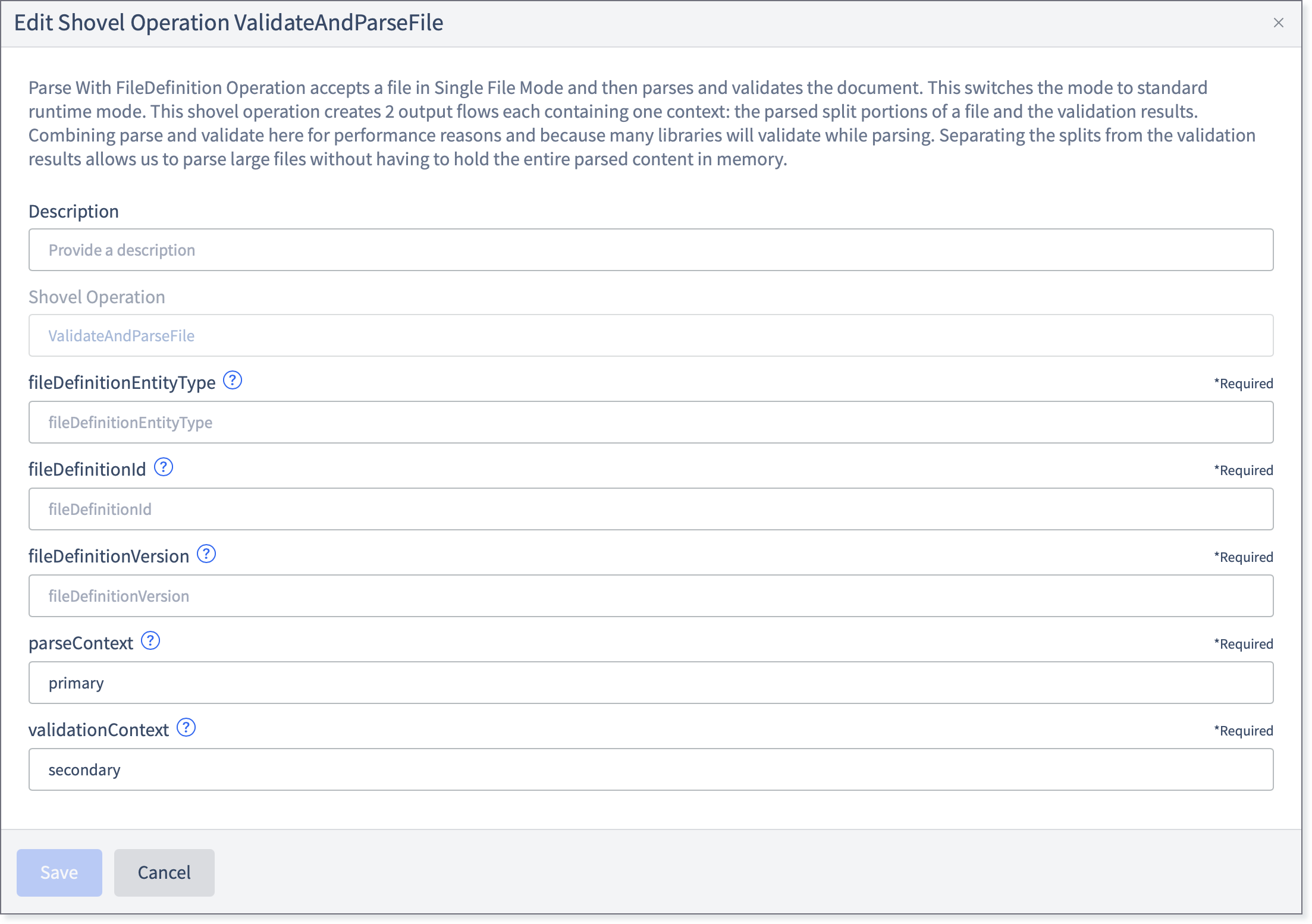

Fill in the following fields:
Description: Allows changing the name that appears on the widget. This may be useful to quickly find a particular widget or distinguishing it from other similar shovel operation widgets when building large flows.
Shovel Operation: The name of the Shovel Operation. Pre-configured to ValidateAndParseFile.
fileDefinitionEntityType: The entity type for the file definition. This is the string value that was provided when the File Definition was created.
fileDefinitionId: The unique Id for the File Definition.
fileDefinitionVersion: A specific version of the file definition.
parseContext: The context to add the parsed file to.
validationContext: The context to add validation results to.
If necessary, click the Notes tab and enter any relevant information.
Click Save.

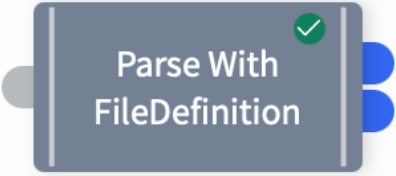

The widget will be marked with a green check.
